Galvanized Canvas Fish Ponds

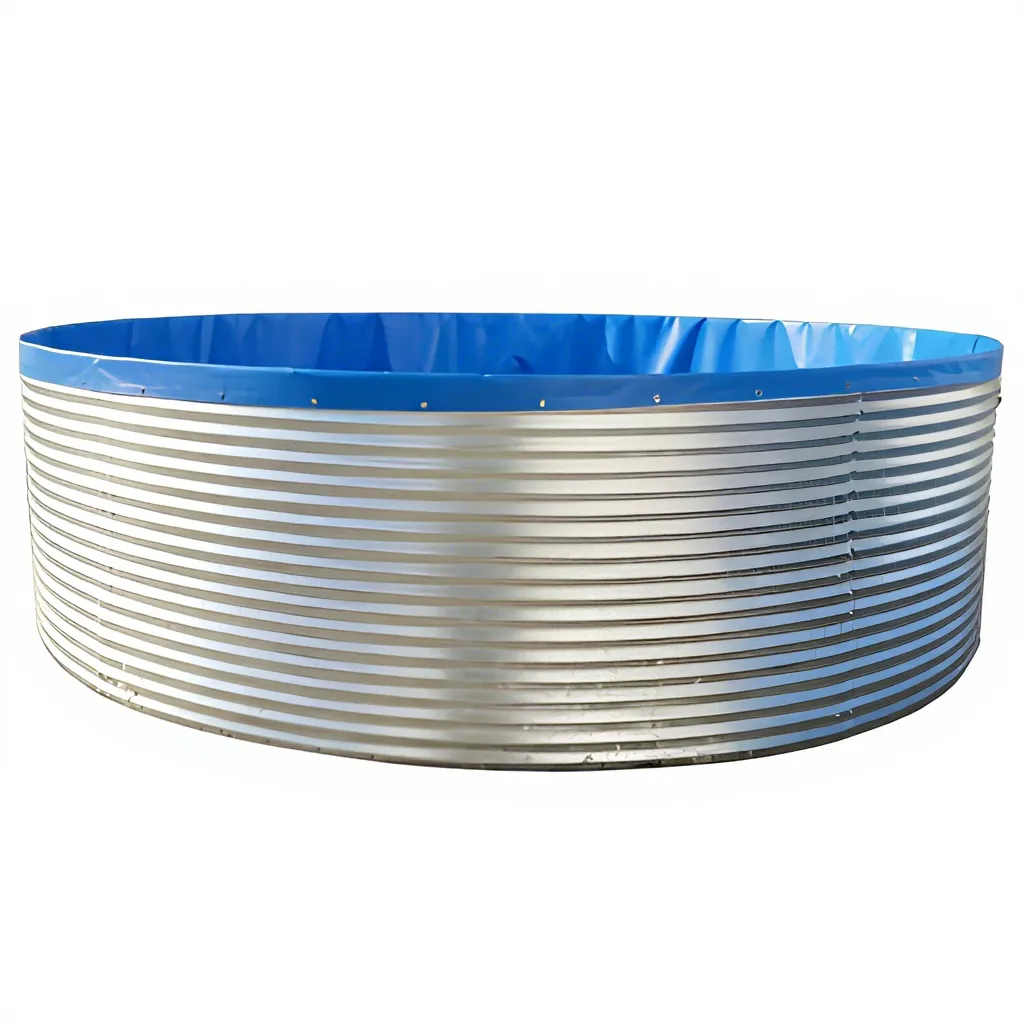

A galvanized canvas fish pond is an above-ground aquaculture tank made of a galvanized sheet frame lined with a high-strength PVC canvas liner. Standard diameters run from 3 m to 30 m, with wall heights of 0.95 / 1.2 / 1.45 / 1.8 m to match the species you farm. The frame is bolted together and the liner clipped in place — two people can assemble a typical pond in a day or two, without concrete, cranes or excavation.

The galvanized steel resists rust, the PVC liner resists UV and frost, and the smooth liner surface is easy to clean and disinfect between batches. Because the tank is above ground, harvesting is simpler: drain through the bottom outlet and net the fish out at waist height instead of dragging nets through deep pond mud.

Canvas ponds take the biological load of high-density culture in a controlled volume. With continuous aeration and daily water exchange, farmers stock 50–150 kg of fish per m³ of water — an order of magnitude denser than an earthen pond — and the crop is far easier to grade, feed and harvest.

The circular shape sets up a swirl when water enters at an angle, sweeping waste toward the central bottom drain; daily flushing removes faeces and uneaten feed before they break down into ammonia and nitrite. Farms raising grass carp, tilapia, bass, catfish or river crab all use this model, and the same tanks work for fry nursing, grow-out, overwintering and live holding before sale.

Density this high makes dissolved oxygen the limiting factor. The standard setup is a Roots blower feeding microporous nano tubing: lay one or two rings of tubing around the inside of the pond bottom, or a loop under the tank, so bubbles rise through the whole water column. A 3–30 m pond needs a blower sized from the ZXMSR table — roughly 1 kW per 100–150 m of tubing — keeping dissolved oxygen at 4–6 mg/L across the tank.

Many farms add a floating aerator for surface mixing and emergency oxygenation. Because the water is shallow relative to the surface, even modest air input moves the tank visibly, and the waste sweep works best when the aeration rings are positioned to reinforce the circular flow.

Place the pond on level, firm ground, clear of sharp stones; many farms lay a geotextile or thin sand bed under the liner for extra protection. Fill slowly through a filter or settle the source water first, and keep an eye on temperature — a full tank of cold well water can stress fish stocked the same day. Use the central bottom drain for daily flushing, and check ammonia, nitrite and pH weekly; the waste load rises with density, so match feed and water exchange to the test results.

Overwintering is simple: canvas ponds can be covered with a greenhouse or left open depending on the species, and the liner shrugs off frost that would crack a concrete tank. Ask us for a complete package — pond, blower, tubing and accessories — sized to your farm.

Concrete ponds are permanent, expensive and slow to build; earthen ponds need excavation, are hard to harvest cleanly and suffer bank erosion. A galvanized canvas pond sits on top of the ground: it costs a fraction of concrete, installs in days instead of months, and can be dismantled and moved when the farm layout changes or land is repurposed. The liner eliminates seepage, so water quality is easier to control and medicine doses are accurate to the exact volume.

For farms that export or expand quickly, the portability is a real advantage — a complete canvas-pond system ships in a container and is running within a week of arrival.

Standard canvas ponds range from 3 m to 30 m in diameter with matched wall heights (0.95 / 1.2 / 1.45 / 1.8 m); custom sizes are produced on request. Options include central bottom drains with standpipe overflow, inlet filters, feeding rings, cover frames for greenhouses and spare liner kits. Galvanized steel is available in hot-dip galvanized and epoxy-coated finishes for coastal or brackish-water sites.

We supply the pond as part of a full system: tank, Roots blower, microporous nano tubing rings, floating aerator for surface mixing, pipes and fittings — quoted together and shipped together. Send your target species and production volume, and our engineers will size the pond and aeration package for your exact numbers.

The galvanized steel frame is cut, punched and hot-dip galvanized in our own workshop; the PVC liner is factory-welded and pressure-tested before dispatch. Every order includes an assembly drawing and a step-by-step setup video, and our support team answers installation questions by WhatsApp or email within one business day. Spare liners and connectors are kept in stock so a damaged liner can be replaced without re-ordering the whole pond. For exports we provide the full packing list and can arrange third-party inspection before shipment.

Match tank size to aeration: the pond aeration calculator returns the blower and diffuser set for each tank volume.
