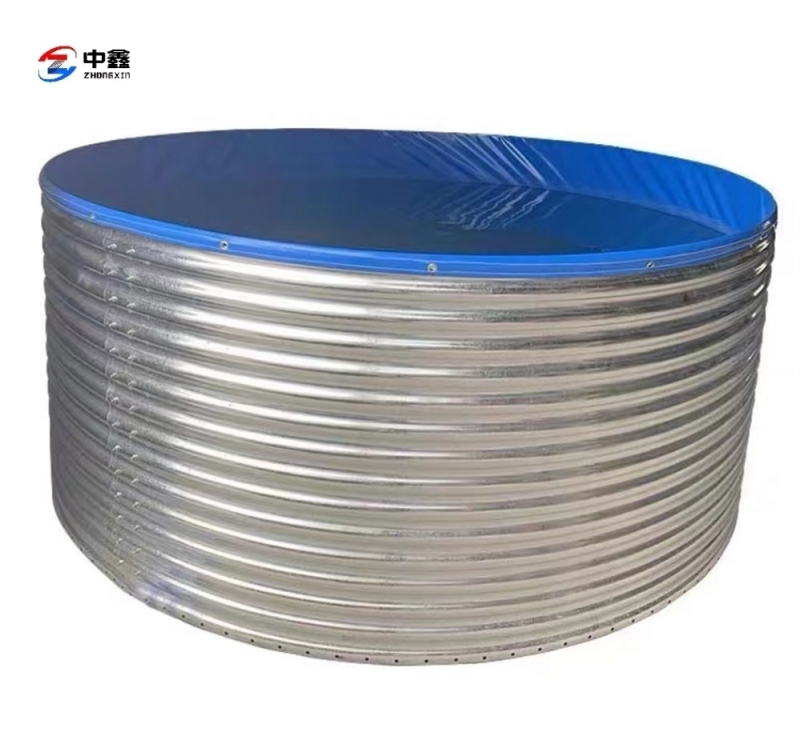

Galvanized Canvas Fish Pond
A round aquaculture tank built from hot-dip galvanized steel panels and industrial PVC canvas — installs in hours, supports high-density farming, and holds its own above ground.
Features
- Multi-pass galvanized steel — will not rust or oxidize; long corrosion-free service life

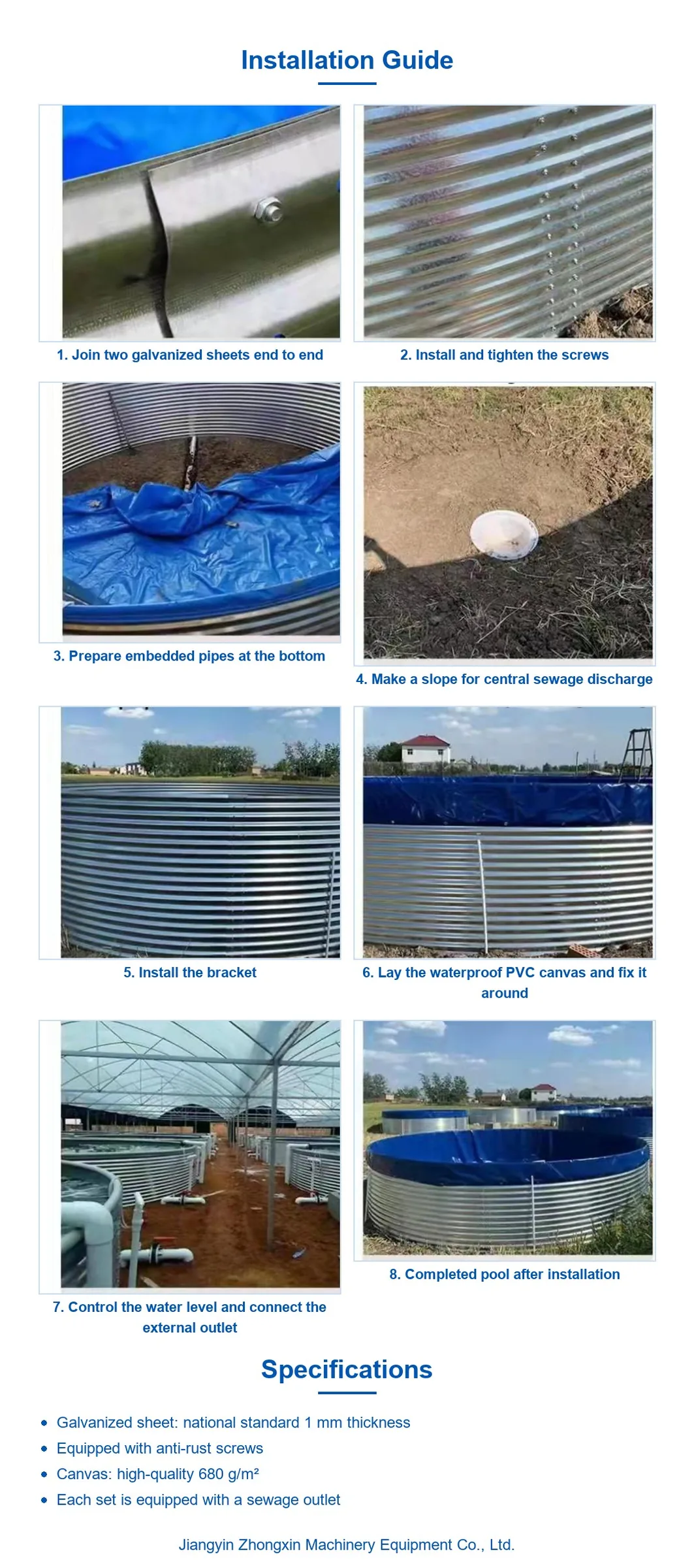

- Simple assembly: align panels, fix with double-row screws — low cost, fast build

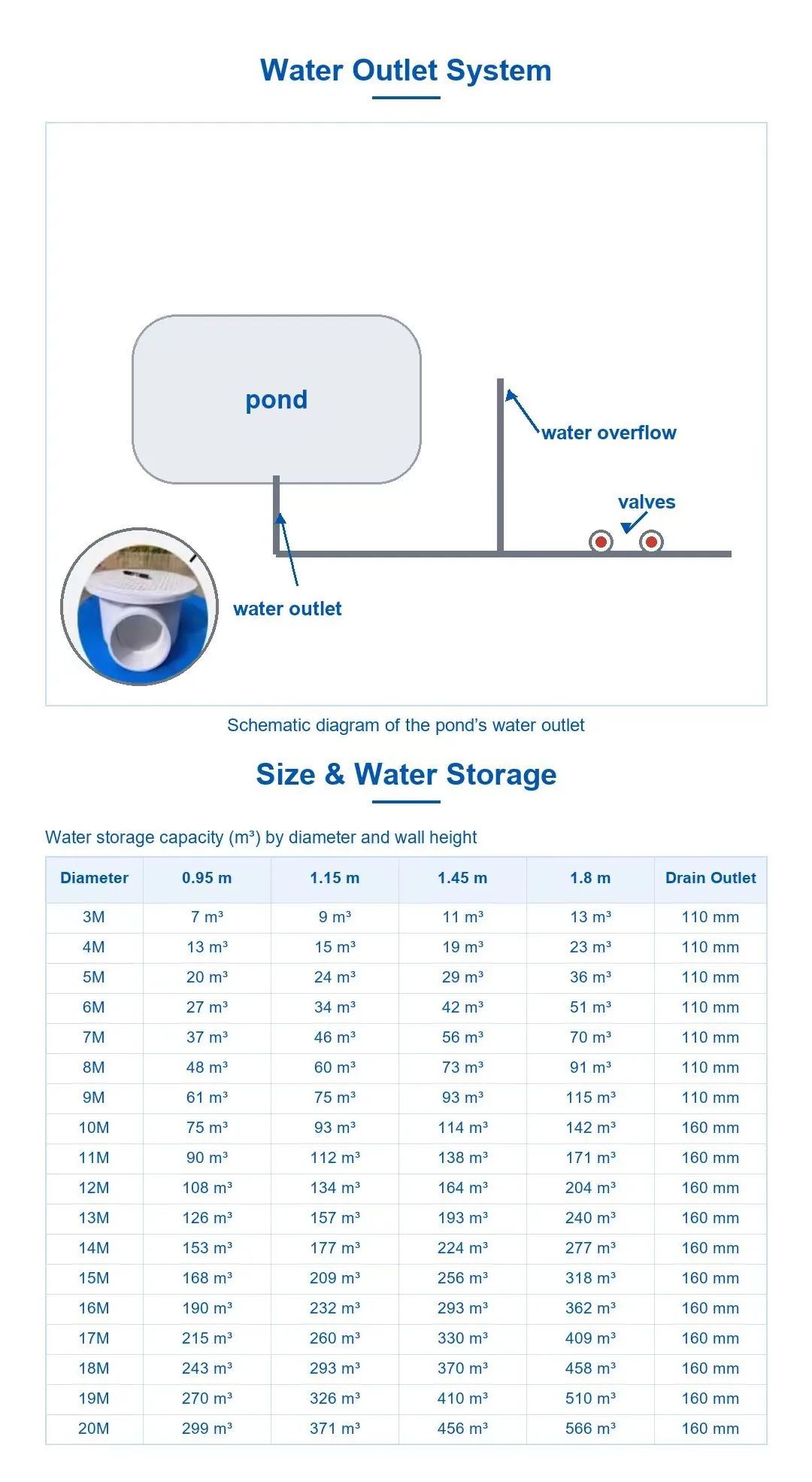

- Sloped bottom with center fish toilet — easy cleaning and discharge

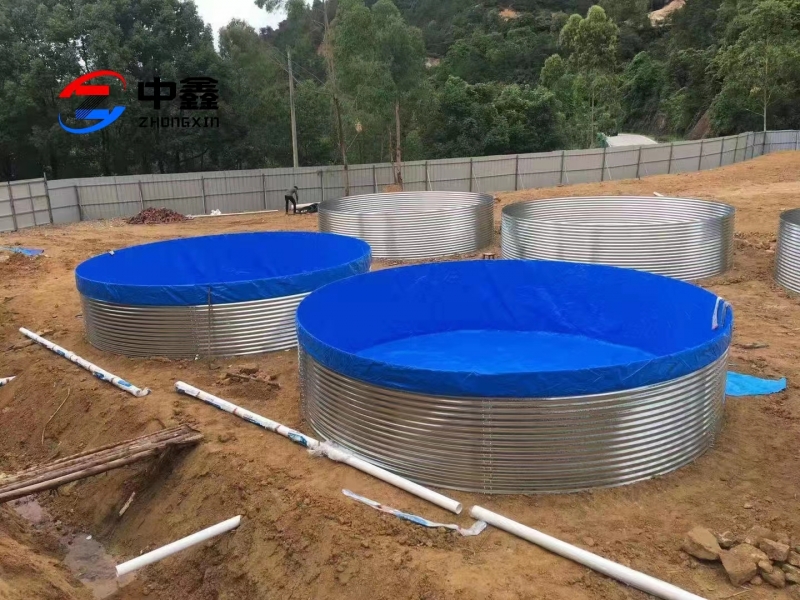

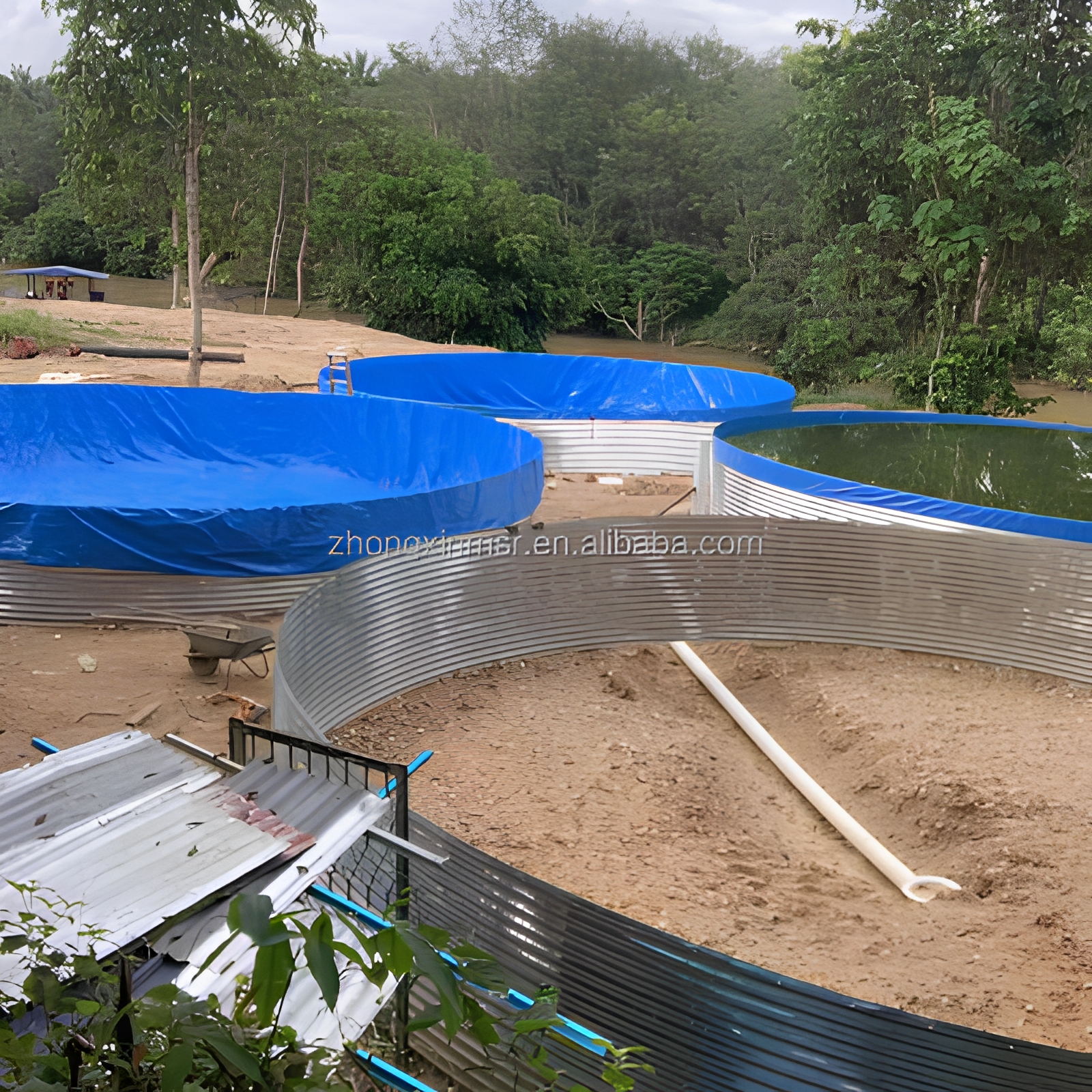

- Built above ground — protected from flood and runoff pollution
- PVC knife-cut canvas inner wall, hot-melt spliced and industrially sewn: waterproof, UV-proof, tear-resistant, frost-resistant, aging-resistant
- Custom sizes: 0.95 / 1.2 / 1.45 / 1.8 m heights, 3–30 m diameters

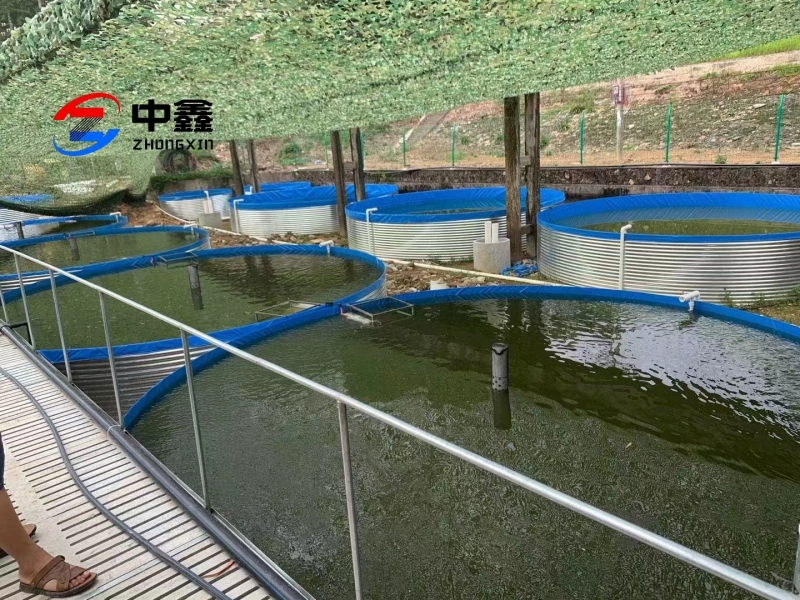

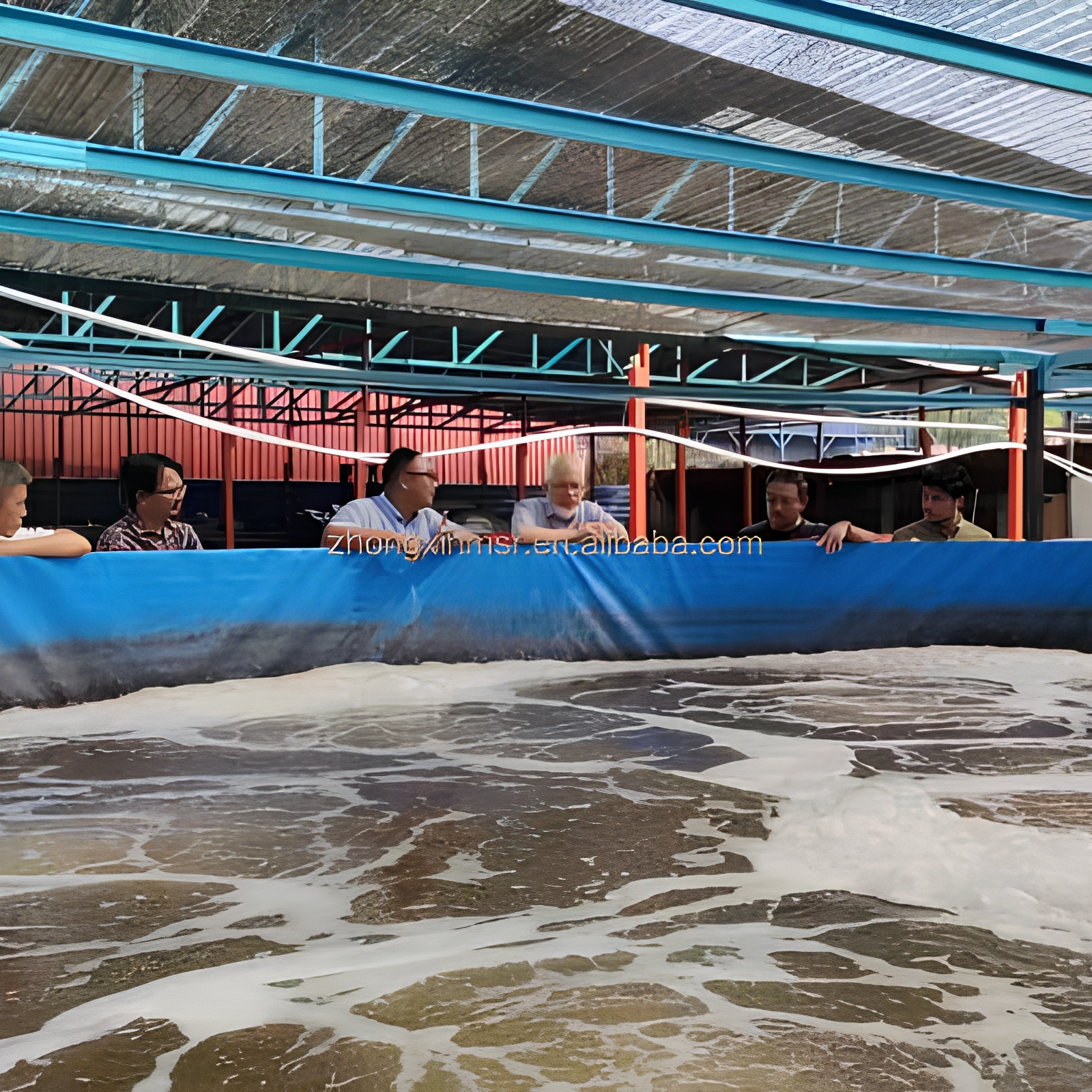

- High-density aquaculture — up to ≈ 80 kg fish per m³ reported by customers
- Multipurpose: fish, shrimp, crab, leech farming; industrial and agricultural water storage

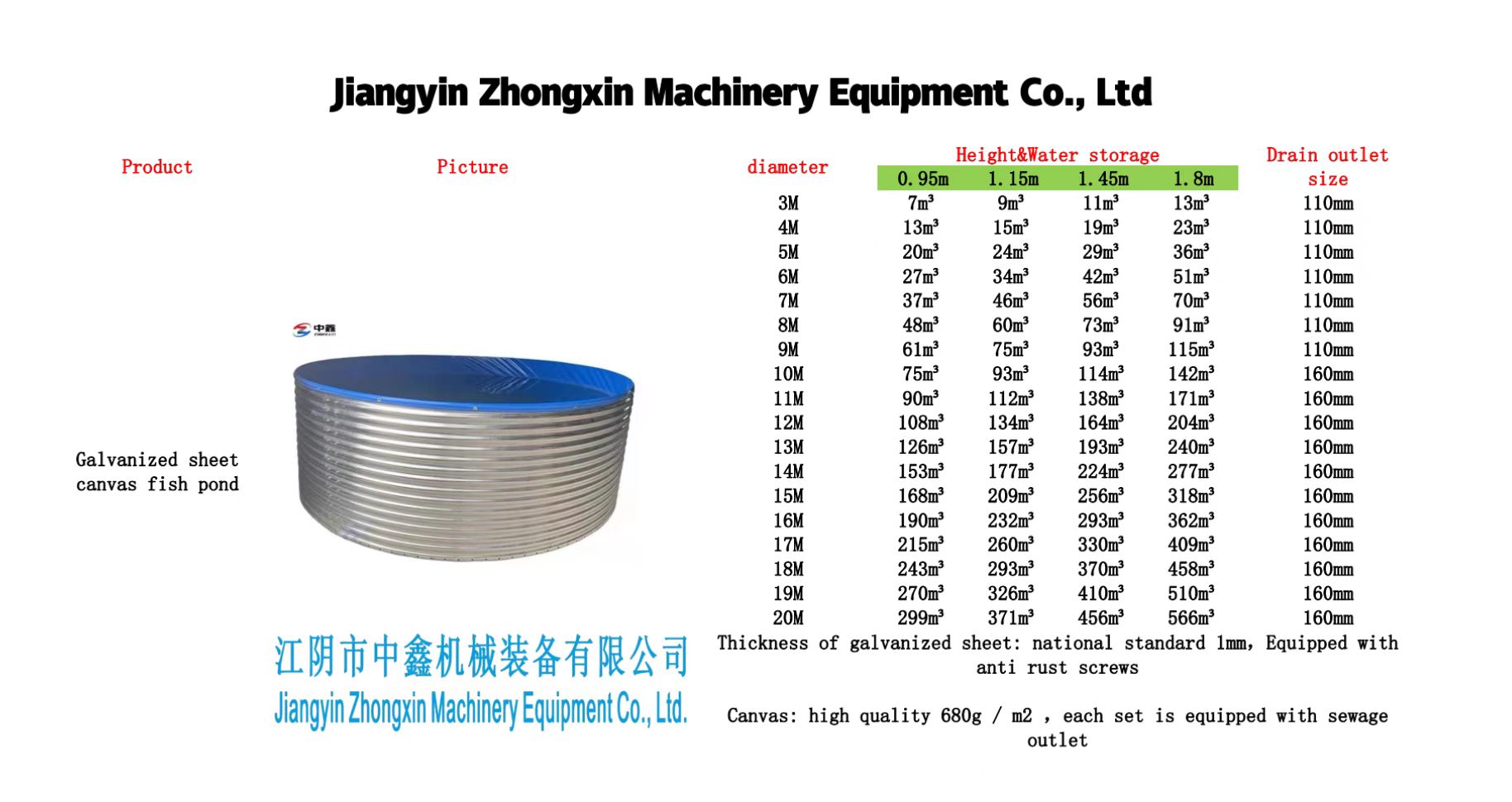

Specifications
| Height | 0.95 m / 1.2 m / 1.45 m / 1.8 m (custom) |
|---|---|
| Diameter | 3–30 m (custom) |
| Canvas weight | 600–1,100 g/m² (as required) |

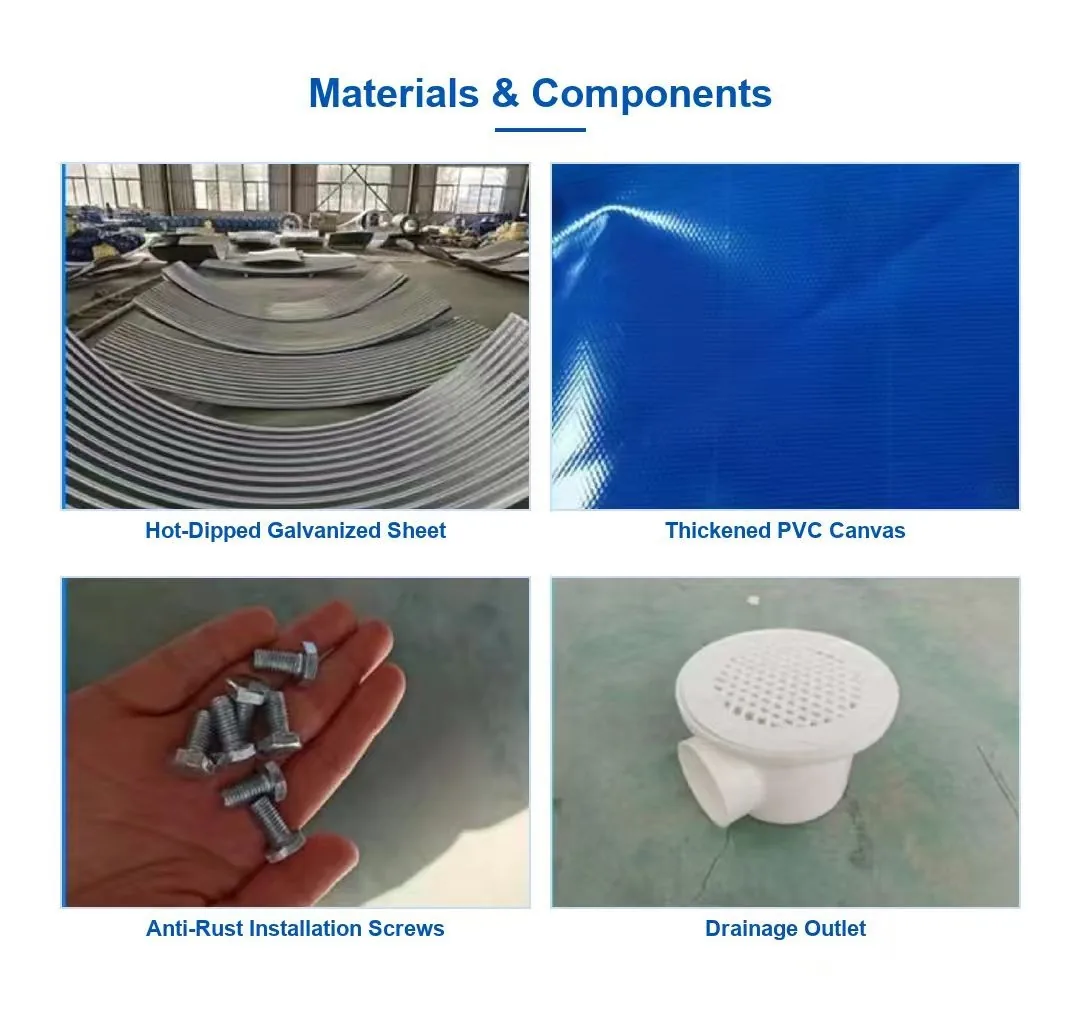

| Material | Galvanized sheet frame + PVC canvas liner |
| Density | High-density; ≈ 80 kg fish/m³ reported |
| Assembly | Double-row screw, no foundation required |
| Use | Fish, shrimp, crab, leech; water storage |
Rated by aquaculture farms worldwide
The ZXMSR blower has run two full seasons without a single stop, and the factory layout support was excellent.
We switched eight ponds to microporous tubing — electricity dropped by about a third and the crop grew through the hot season.
Frequently asked questions
How much oxygen does my pond need?
Keep dissolved oxygen at 3-5 mg/L at the pond bottom; below about 2 mg/L fish stress and mortality start, especially around dawn. Monitor at depth, not at the surface.
What's the difference between microporous tubing and paddle wheels?
Microporous tubing oxygenates the bottom layer where fish rest at night, with about 50% lower energy use; paddle wheels mix the surface and are best kept as emergency backup.
Do you deliver to my country?
Yes, we export worldwide - send your project details for a FOB/CIF quote with lead time, usually within 24 hours.
